ST 870

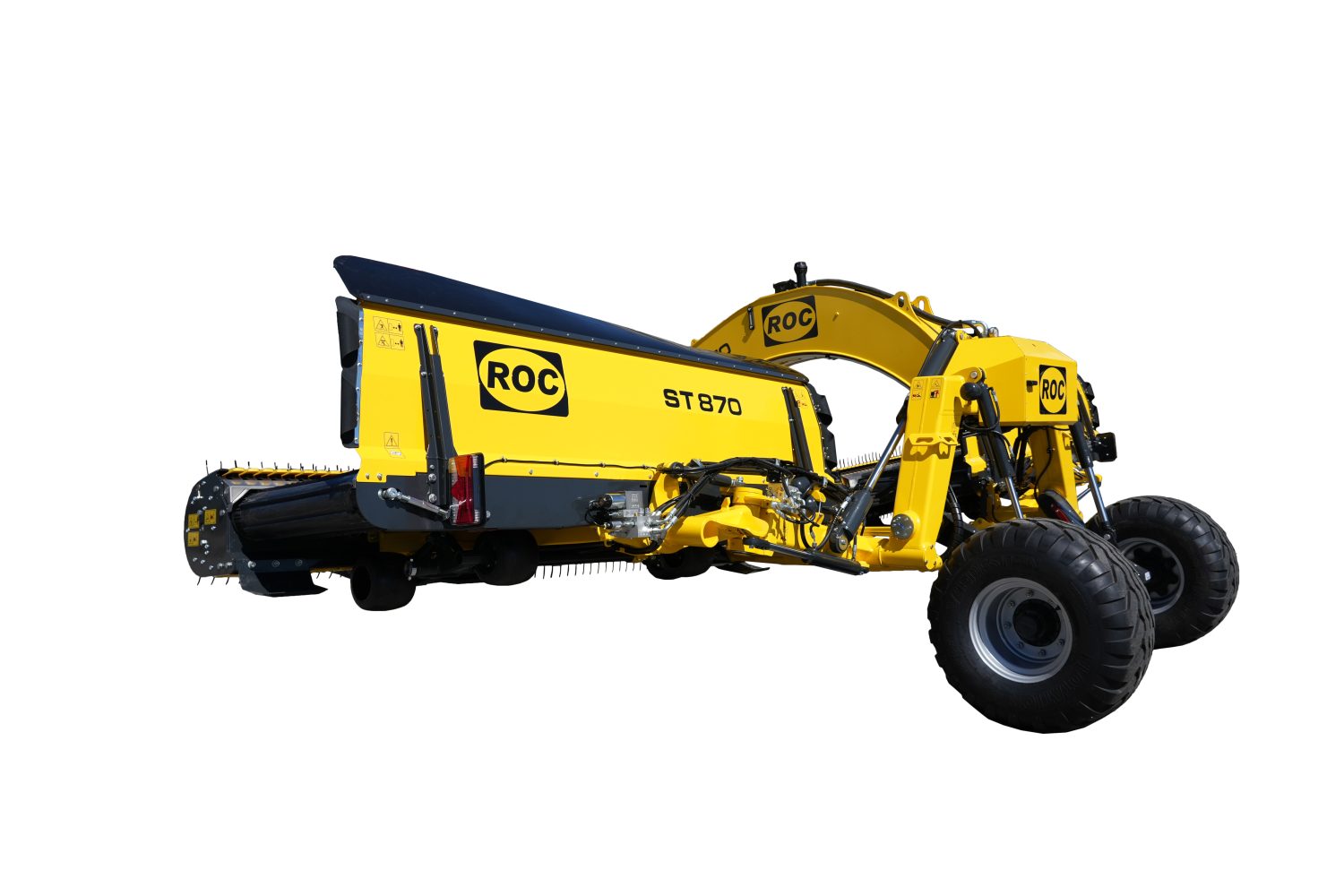

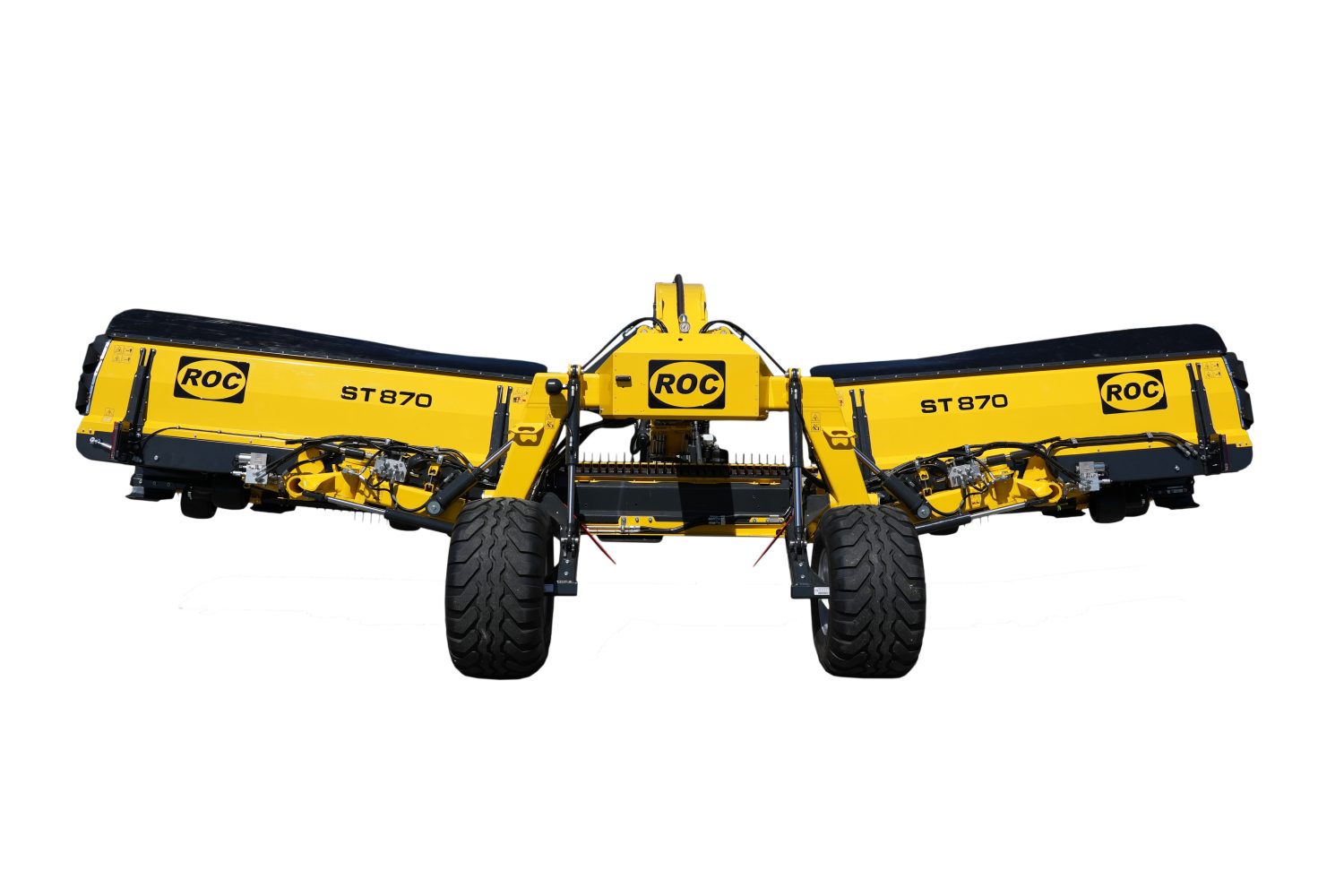

The Continuous Merger ST 870 consists of 3 elements, with a working width of 8,7 m (28′ 6 ») and a pickup width of 7,6 m (24′ 11 »).

This model is equipped  as standard with:

– 6 bar pick-up

– 8 wheels placed in tandem with spring suspension (manual

  adjustment)

– hydropneumatic suspension with cylinders

– manual belt switch-off

– hydropneumatic road suspension system

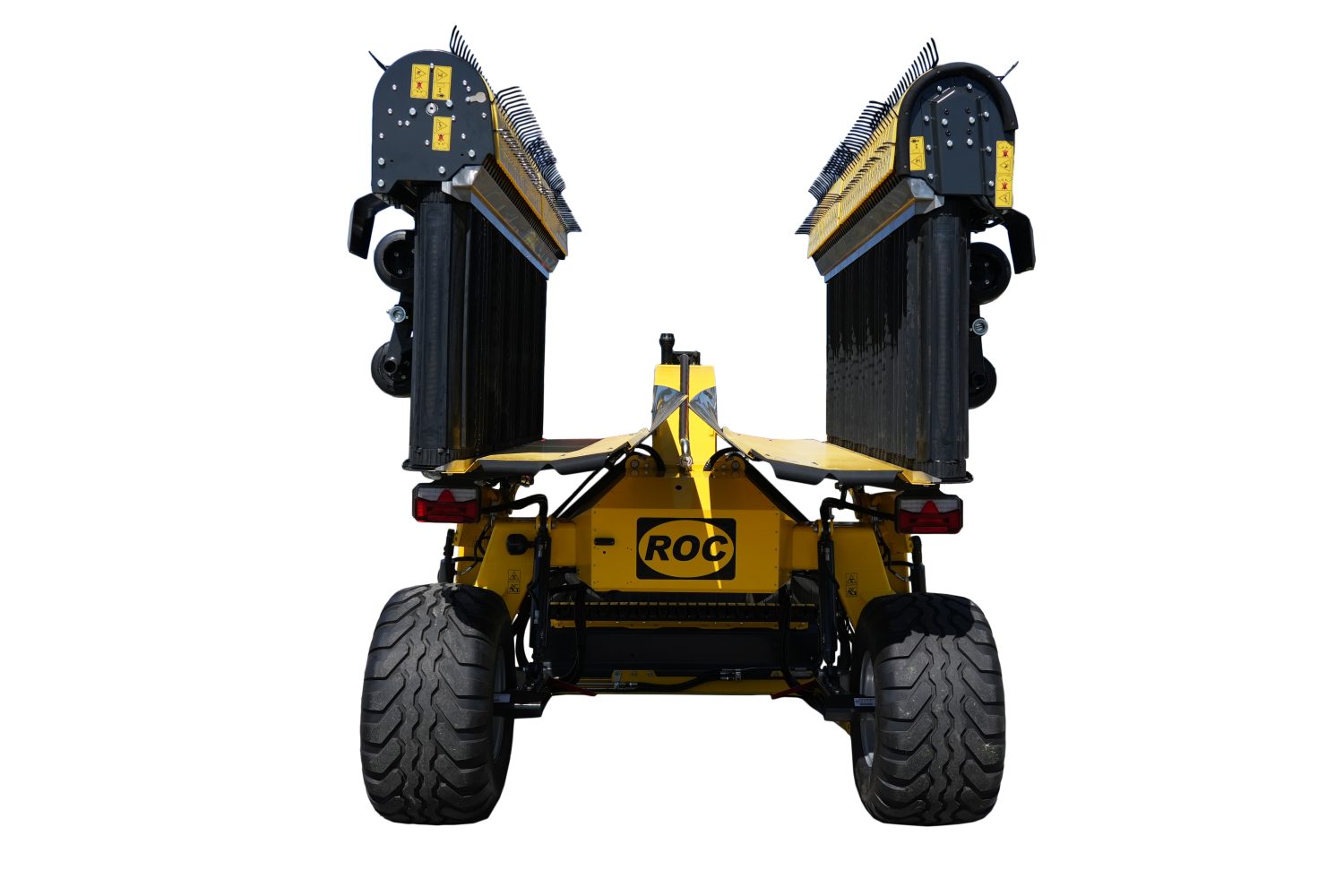

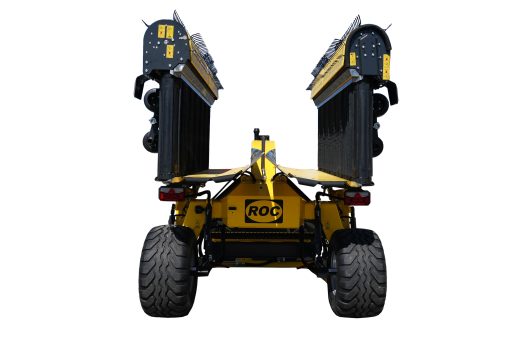

It can unload the crop of the three belts on both sides or two belts on one side and the other belt on the other side. Moreover, the belt of the central element can be removed in order to form one central swath after having picked up all the crop from the ground. This version can work only with the three elements unfolded, it has no braking system and it can be folded up for transport reaching a transport width of 2,5 m (8′ 2 »).

OPTIONAL

Airbrake system homologated Mother Reg.
